Schedule Backplane Audit
This dialog is called from the ENP menu “Tools – Basic TE Configuration – Schedule Backplane Audit…”.
Purpose
The main purpose of this feature is to schedule audits for surveillance of the consistency of QoS reference tables on the node internal backplane ports throughout the network.

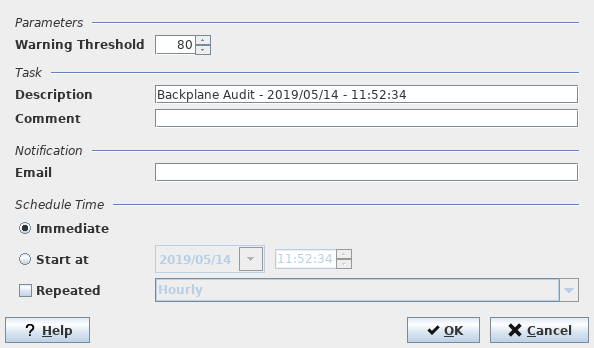

Dialog image
Schedule Backplane Audit
Mandatory entries
Not applicable.
Optional entries
Description
Comment
Email address
Schedule Time
Informational content
Parameters
Warning threshold | Bandwidth usage threshold in the range 0…100%. Default is 80%. When this threshold is exceeded for a specific node or slot, the corresponding entry in the audit result indicates “Warning” in the status column. |
Task
Description | Enter a description for the Network Audit task. This entry is optional. A default is provided with current date and time. |
Comment | Enter a comment for the Network Audit task. This entry is optional. |
Notification
Email | Enter an email address for the notification of the audit task. This entry is optional. |
Schedule Time
Immediate | Select this option to execute the audit immediately upon clicking “Schedule Audit”. |
Start at | Select this option to execute the audit at a specific date and time. Select the date from the calendar and enter the time in the appropriate fields. |
Repeating | Enable this option to repeat the audit at a selected interval. Select the interval from the following options: - Hourly, - Daily, - Weekly, - Monthly. |
Controls (buttons, menu items, etc.)
? Help | Calls the help viewer and opens this page. |
OK | Starts the audit task and closes the dialog. |
Cancel | Closes the dialog without scheduling the audit. |
Related dialogs / windows
