Class Type
Purpose
Displays used (“Active”) Class Types as defined in Class Type (HQoS Class Type Definition). To add, modify, or delete Class Types, go to the Class Type definition dialog in the HQoS Configuration Manager.

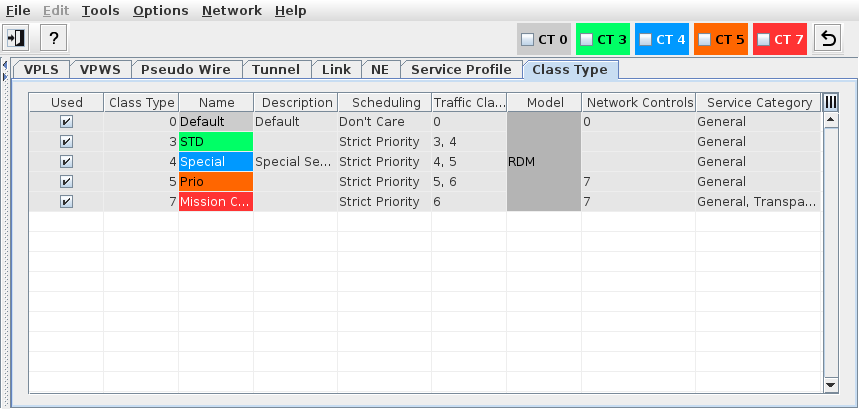

Dialog image
ENP – Class Type
Mandatory entries
Not applicable.
Optional entries
Not applicable.
Informational content

Used
Indicates whether the Class Type is used or not.
Class Type
Class Type as defined via the Class Type (HQoS Class Type Definition) definition dialog of the HQoS Configuration Manager.
Name
The specified Class Type Name.
Description
The configured description of the Class Type.
Scheduling
The scheduling type.
Traffic Classes
Comma separated list of traffic classes from 0 to 7.
Model
The HQoS model as configured in Class Type (HQoS Class Type Definition).
Network Controls
Comma separated list of network controls from 0 to 7.
Service Category
Comma separated list of service categories, as defined in Service Category (HQoS Service Category Definition).
Related dialogs / windows
ENP Main Window,
MPLS-TP Introduction,
Service Provisioning and Deployment via ENP GUI,
Create Service Profile,
Class Type (HQoS Class Type Definition).
