Hardware View Subunit
Purpose
The Subunit View is the third level of the hardware view hierarchy and provides access to the status and the alarm customisation functionality of the subunit.
Please note:
The Status/Maintenance dialog that can be opened with the Status button is the same as the one reached using the Unit Configuration > Status/Maintenance menu item of the UCST.

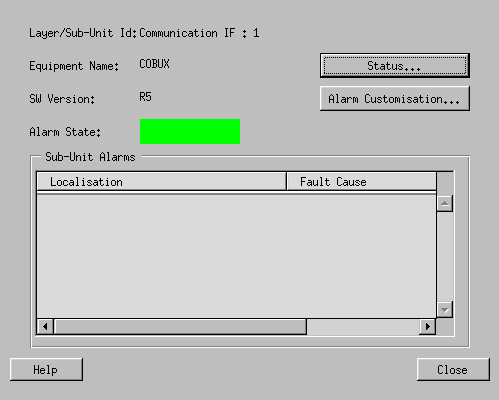

Dialog image
NE_name
Mandatory entries
Not applicable.
Optional entries
Not applicable.
Informational content
Layer / Sub-Unit Id | The layer name (e.g. E12/P12) and the subunit number. |
Equipment Name | The five character name designating the FOX51x unit. |
SW Version | The version of ESW that the template used to configure the unit in UCST has been based on. The resident ESW must be same version or higher. |
Alarm State | The color for the Severity of the highest current alarm in the subunit. |
Sub-Unit Alarms | A list of the currently active alarms of the selected subunit only. |
Controls (buttons, menu items, etc.)
Status… | Calls the status dialog for the unit. This is the same dialog reached via the menu Unit Configuration > Status/Maintenance of UCST. |
Alarm Customisation… | Opens the Alarm Customisation dialog for the subunit alarms. |
Help | Starts the FOXMAN‑UN help viewer and opens this page. |
Close | Closes the dialog without applying the modifications. |
