Defining End Point of an Application
The Endpoints A End NE and Z End NE have to be specified first before FOXMAN-UN NP can start to search for all possible hops having enough capacity to carry the P0_nc service.

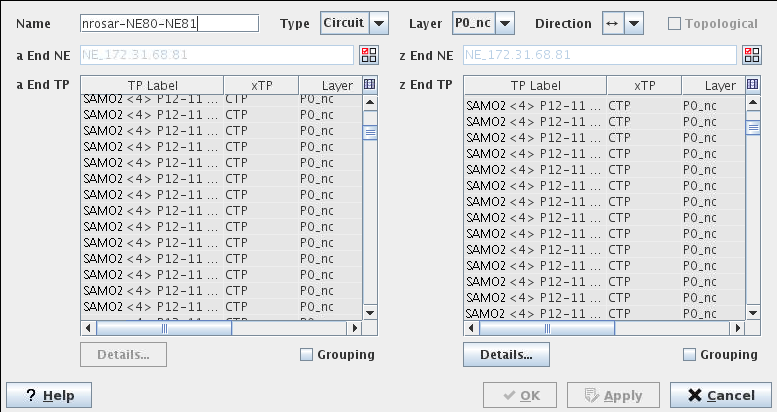

In the example below the data service provisioned is based on the «Type» of «Circuit» and uses a bandwidth of a P0_nc «Layer» structure with the application being bi-directional indicated in the «Direction» field.
NP: Defining End Point of an Application
The a End Terminating Point (TP) and the z End TP can be selected via the TP Browser Table.

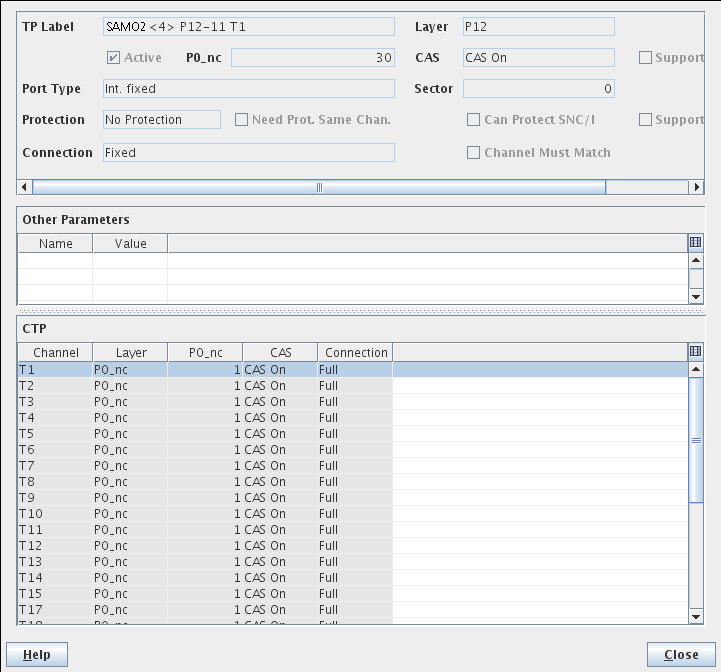

The detailed information of the selected or highlighted TP is called by clicking on “Details” button, which calls the TTP dialog.
The TTP dialog below provides useful information such as:
• the Layer rate of a TTP,
• the Signaling (‘CAS’),
• protection modes supported,
• etc.
NP: TTP Dialog
