Inventory
The inventory of the managed network is periodically collected and saved in the FOXMAN-UN database.
Inventory reports of different types can be generated and either sent to the screen or saved as a CSV or a XML file for integration into an OSS (Operation Support System).

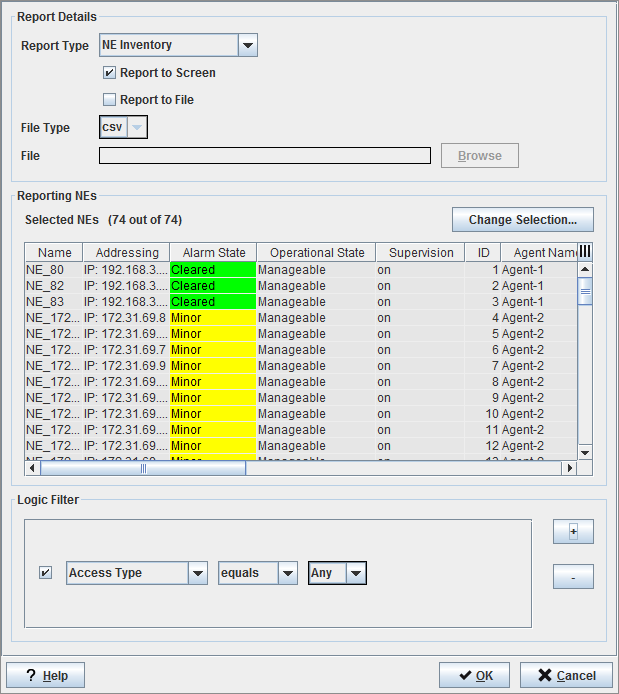

A «Request Inventory Report» dialog is provided for the configuration of the required report.
Print - Inventory (Request Inventory Report)
The following types of reports can be generated:
• NE Inventory:
NE properties and relevant agent properties.
• Unit Inventory:
Hardware and ESW properties of all units in the selected NEs.
• Port Inventory:
All ports per unit, with their label, layer rate, activity status and service type.
• Configuration Inventory (for FOX51x NEs):
− NE inventory:
NE properties and relevant agent properties.
− TTP:
TTP properties and relevant agent properties.
− Matrix connections:
All cross-connections with their group label, layer rate, directionality and protection as well as their a and z end identification and trail termination point data.
− Software:
Software installation configuration and relevant agent properties.
− Timing source.
− NE parameters.
