Circuit Emulation
The Circuit Emulation application is the browser-based graphical user interface for creating and monitoring Circuit Emulation Services (CES) in FOX61x networks.

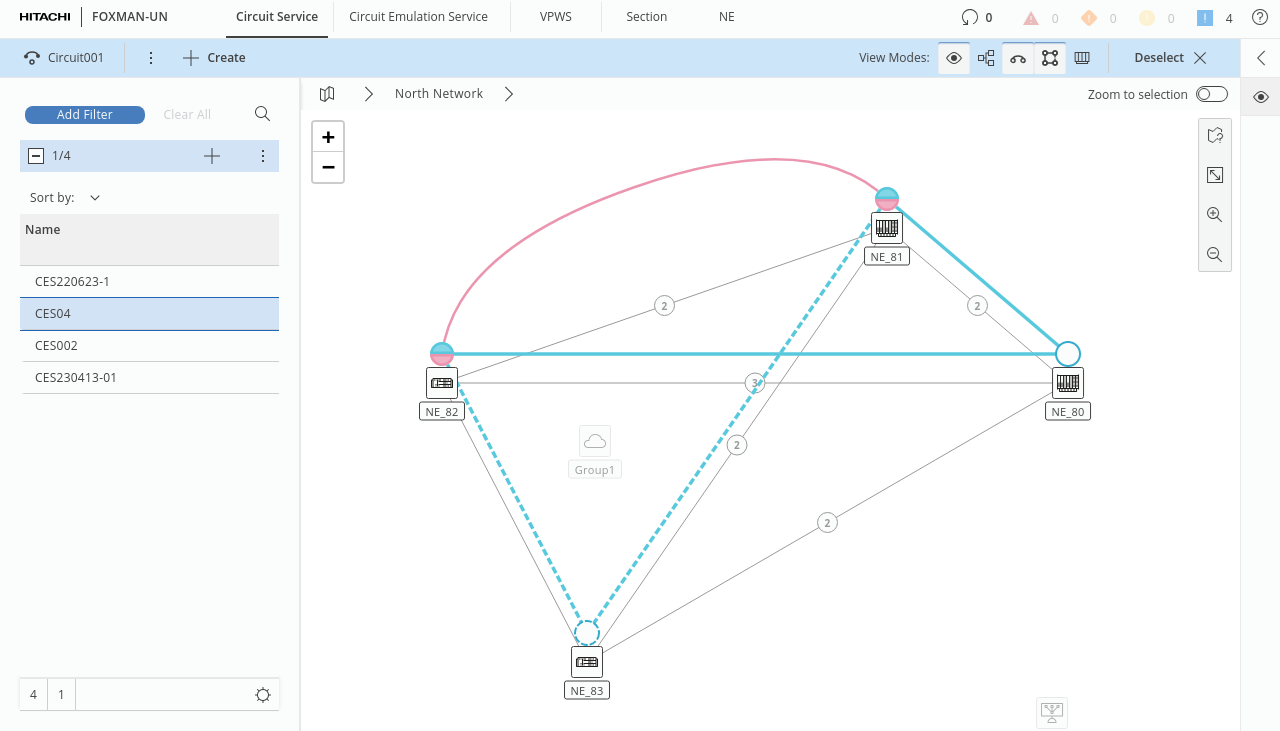

Sample CEM Overview Dialog with service list and service map
The CEM GUI dialog provides the following main tabs:
• Circuit Services
Lists all TDM Circuit services that make use of CES in the network;
Provides a service creation wizard guiding through all required steps to create and deploy a Circuit Service.
• Circuit Emulation Services
Lists all CES services in the network;
Provides a service creation wizard guiding through all required steps to create and deploy a CES.
• VPWS
Lists all Virtual Private Wire Services (VPWS) that are required for providing circuit emulation services and teleprotection services.
• NE (Network Elements)
List all network elements and their key characteristics, including their support for CES services;
• Section (physical links)
Lists all sections in the managed network and their key characteristics.
List entries can be filtered, and single or multiple entries can be selected and more detailed properties can be displayed for any selected entries.
Various context menu options are available, such as opening initiator or terminator NE configuration directly from the service, NE, or section, opening a details view, deleting a service, changing admin states, opening the alarm list.
