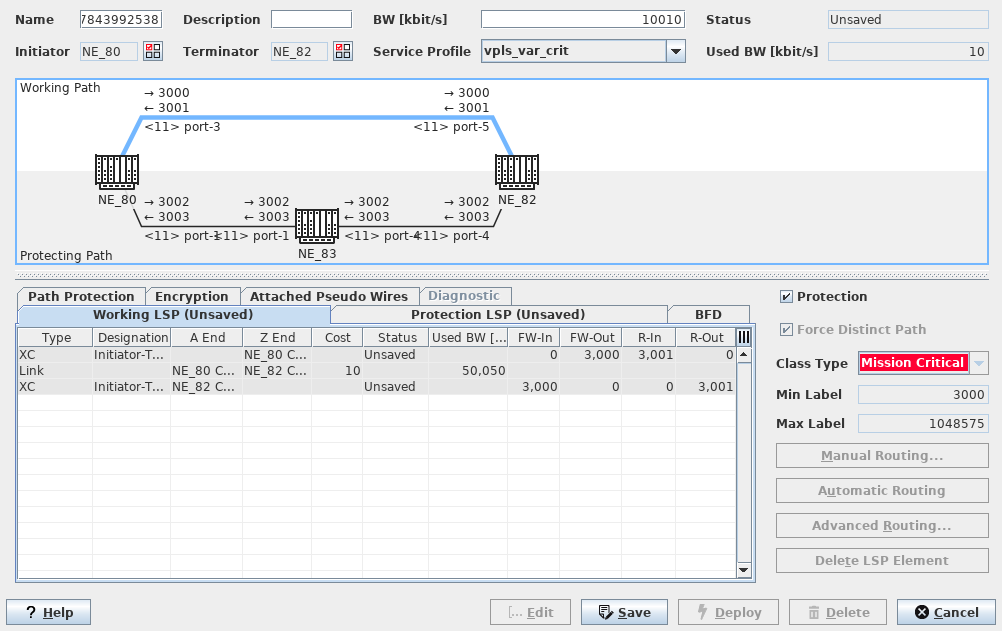

Allows creation of Tunnel with working and optionally protection LSP. The LSPs can be created via Manual or Automatic Routing.

The created LSPs are co-routed bidirectional LSP. This means the forward and reverse directions of a bidirectional LSP follow the same path, that is the same nodes and links from nodes A to Z or from nodes Z to A.

During Tunnel configuration, the path bandwidth, Bidirectional Forward Detection (BFD) session to detect failure condition on the path, and the path protection parameters can also be configured.

When Service Profiles are used some of the settings applied during tunnel creation are predefined in the profile.

The same dialogs are used in view only mode for the “Tunnel Details” view that is available for existing tunnels.

In the tunnel graph, details of an LSP element can be displayed in an informative tool-tip, Link details can be shown, and the A End NE or Z End NE configuration can be opened with the required user class.
