FOX61x NE Configuration
FOXCST / FOXMAN-UN Look and Feel Similarities
The configuration dialogs for the FOX61x NEs are the same as the dialogs of the standalone FOXCST GUIs. This permits an operator familiar with the standalone FOXCST GUIs to do NE configurations from FOXMAN-UN without additional training.

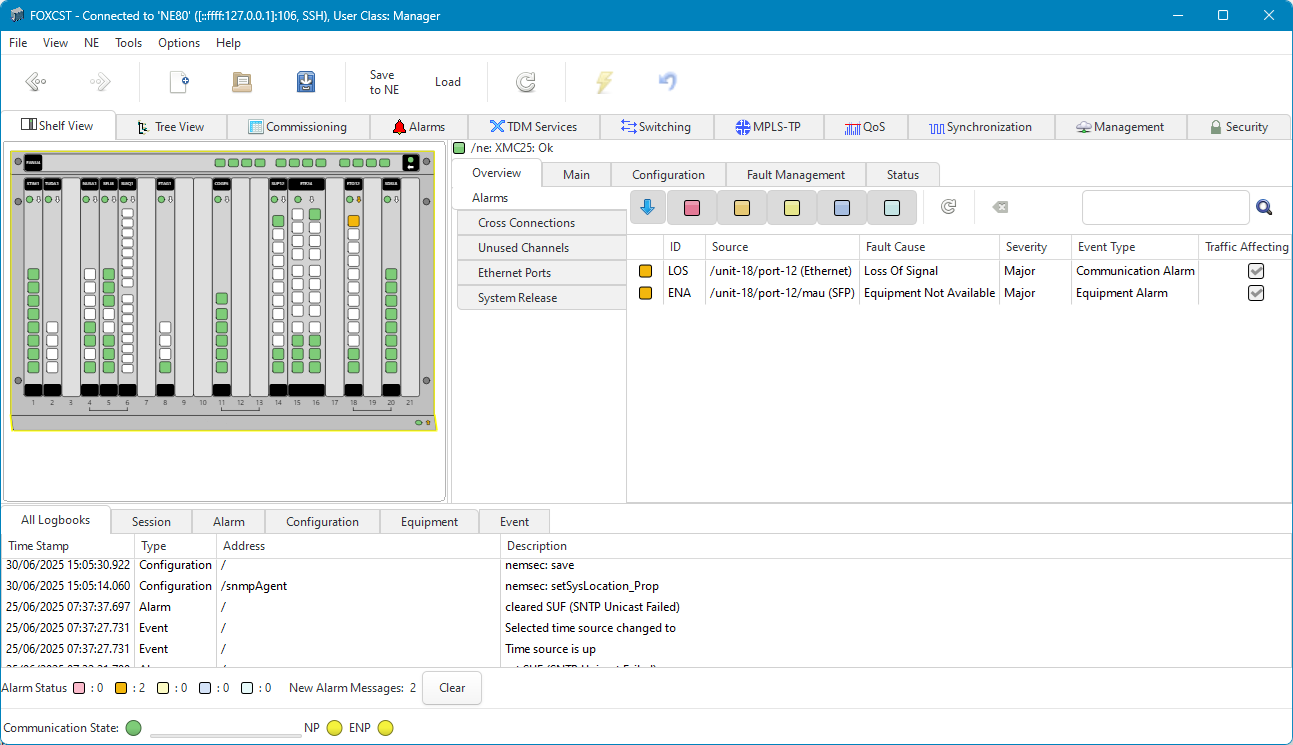

The screenshot below shows an example of the FOXCST GUI connected to a FOX61x NE. The NE is shown in the shelf view, with a presentation of the physical arrangement of the units in the subrack.
Further views of the FOX61x NEs are:
• Tree view,
• Commissioning,
• Alarms,
• Cross Connections,
• Switching,
• MPLS-TP,
• Management Interfaces.
FOX61x NE Configuration (Shelf View)
