FOXMAN-UN Architecture
The key to the deployment of FOXMAN-UN is its architecture, which is designed with distributed management in mind and is based on a modern hardware platform and object oriented technology.
FOXMAN-UN architecture consists on the following components:
• NEM Core including database,
• Agents (southbound interfaces),
• NEM Client (Main GUI includes NEM Desktop, NEM Configurator, NEM Network Browser),
• Northbound Interfaces (e.g. SNMP, CLI).

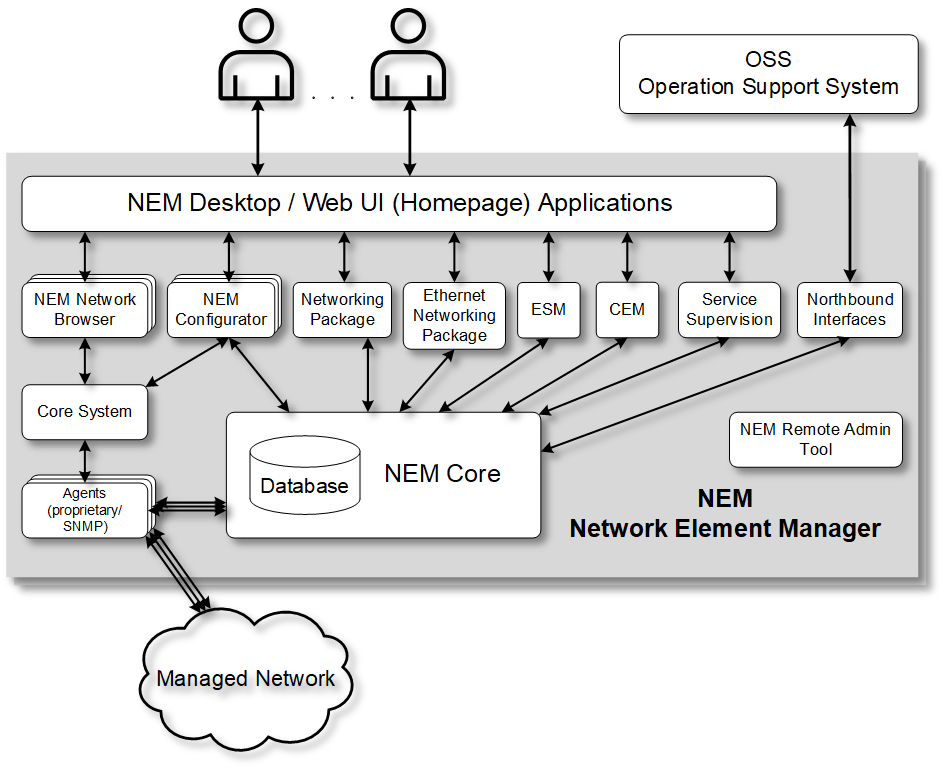

FOXMAN-UN Architecture
