Section

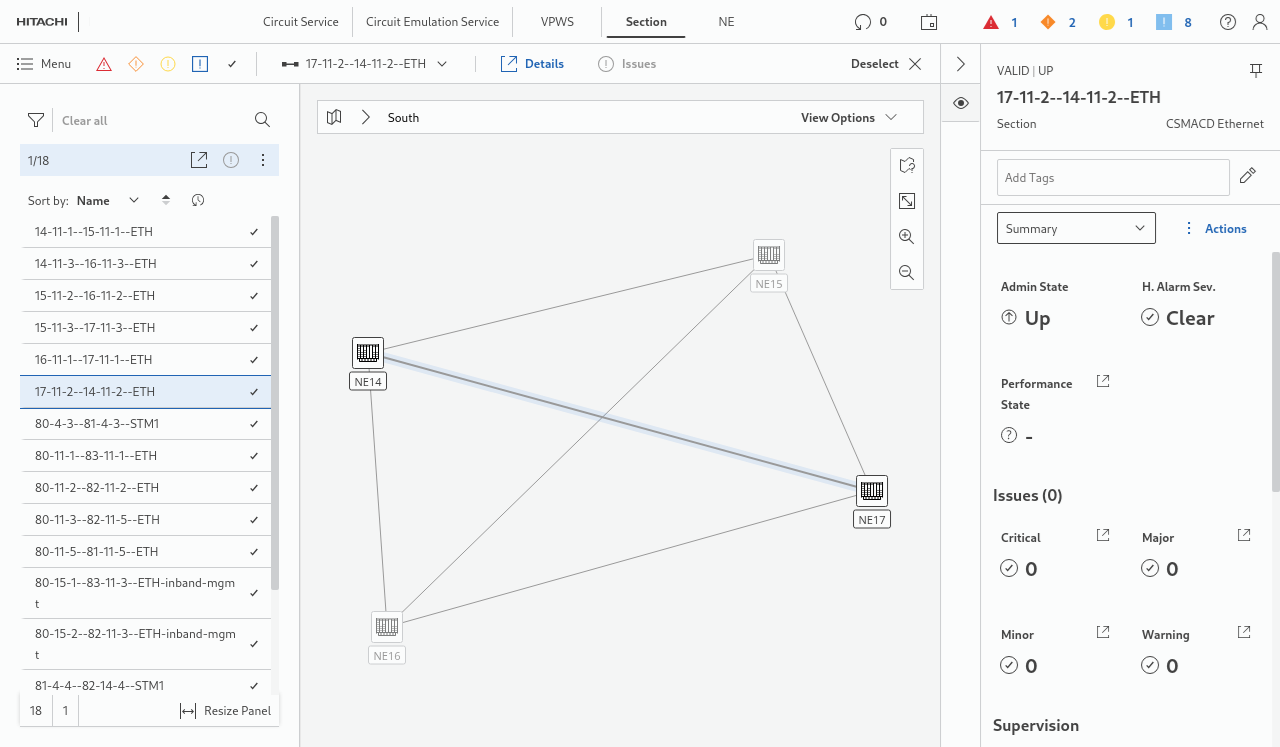

All sections that are member of the NP (TDM) and/or ENP (MPLS) domains are listed in this view.
You can select one or several items in the list. For a single selected item, you can view detailed information by clicking on the “view” icon in the right-hand icon bar. The detailed information for a selected section includes
GENERAL:
• Name
• Type
• Layer Rate
• Bandwidth
• Highest Alarm Severity
INITIATOR:
• NE
• Port Label
TERMINATOR:
• NE
• Port Label
You can pin one or several items in the list (see pin icon in the left-most column) so that an icon for their details information will appear in the right-hand icon bar. If you expand the icon bar by clicking on the respective icon, more details on the pinned item(s) will be shown.
