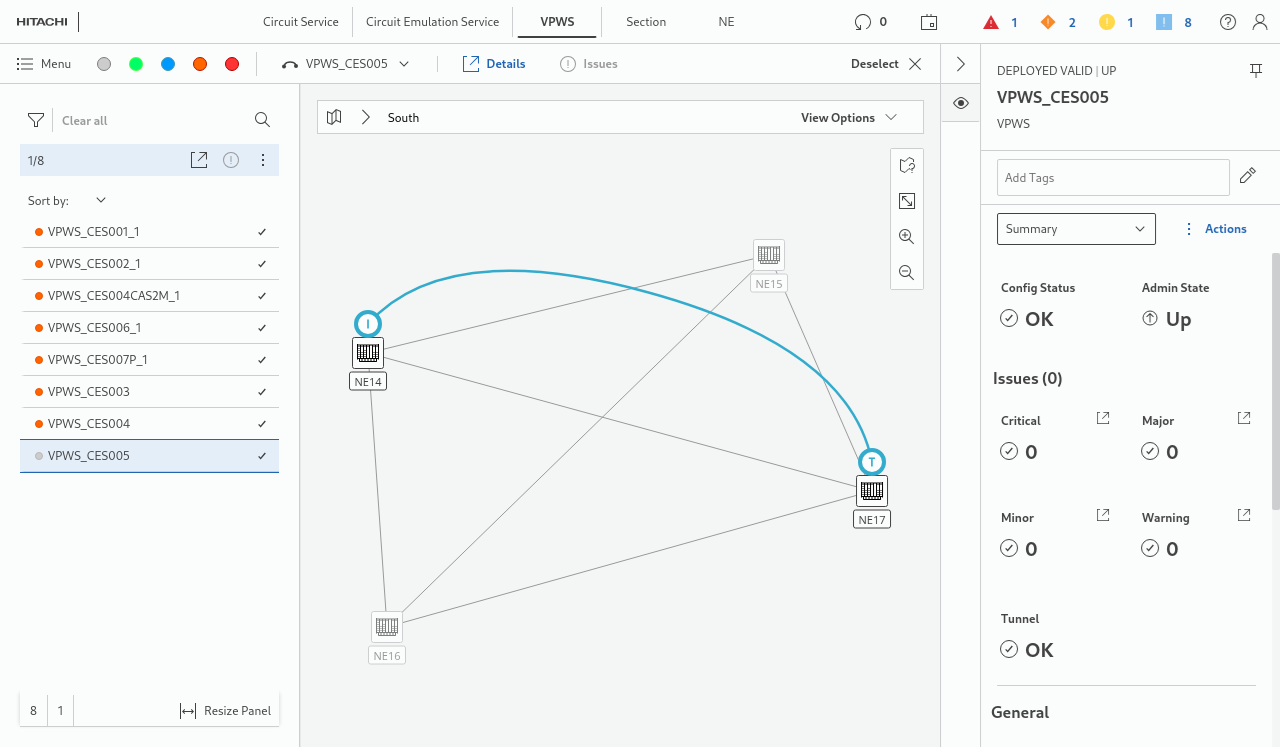

VPWS (Virtual Private Wire Services)
All VPWS that are used for Circuit Emulation services are listed in this view.
You can select one or several items in the list. For a single selected item, you can view detailed information by clicking on the “view” icon in the right-hand icon bar. The detailed information for a selected VPWS includes
GENERAL:
• Name
• Description
• CES
• Bandwidth
• Class Type
• Service Profile
INITIATOR / TERMINATOR (for each of the two):
• NE
• Port Label
• Port Type
• Type
• AC VLAN
• Pseudowire VLAN
For a single selected item, via the context menu, you can also open the Initiator or Terminator node in the local craft terminal (FOXCST) with the required user class or view the alarm list for the selected Initiator or Terminator node.
You can pin one or several items in the list (see pin icon in the left-most column) so that an icon for their details information will appear in the right-hand icon bar. If you expand the icon bar by clicking on the respective icon, more details on the pinned item(s) will be shown.
