Related Entities
Related entities are the entities that are:
• used by particular entity (e.g., shows services using selected network element, section, tunnel)
• using particular entity (e.g., shows network elements, sections for selected service)
The related Entities are presented in the details panel (right panel) and in the details page. Listing them enables the user to traverse the configuration relation top-down (used by) and Bottom-Up (using). In the context of the details panel – the user can control visibility of the related entities on the map through related tab; in the context of the details page – the user can open details of the related entities within details page’s area.

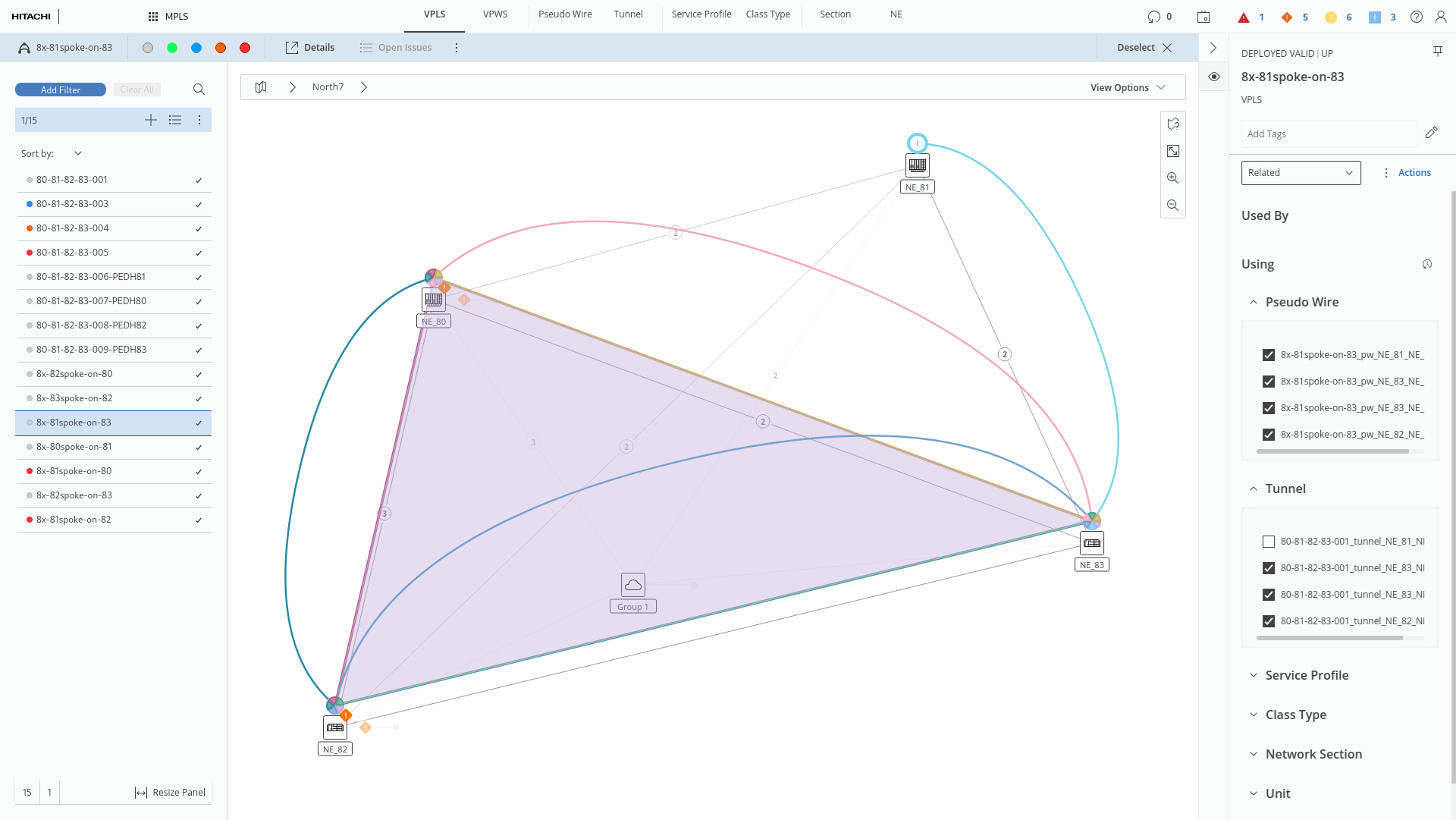

Related Entities View opened in Details Panel – allowing the user to control visibility of related entities
