The new Application
On the existing base, the FOXMAN-UN NP will allow you to create a new Application containing one TE of the Circuit type. The Circuit itself is layered as a P0_nc, bi-directional link between the two end Termination Endpoint point located in NE82 (a End TP) to NE80 (z End TP) with a capacity of 192 kbit/s.
The Application dialog below to create new Application is called from NP Main Window NP Main Window menu via File > New Application.
Please note:
The provisioning example described in this section assumes the following:
→ NP database is initialized.
→ NP/BP databases are synchronised.
→ No pending changes indications.
→ No application conflict detected.
In case of any of the above listed issues, please refer to section Main GUI Status Indications

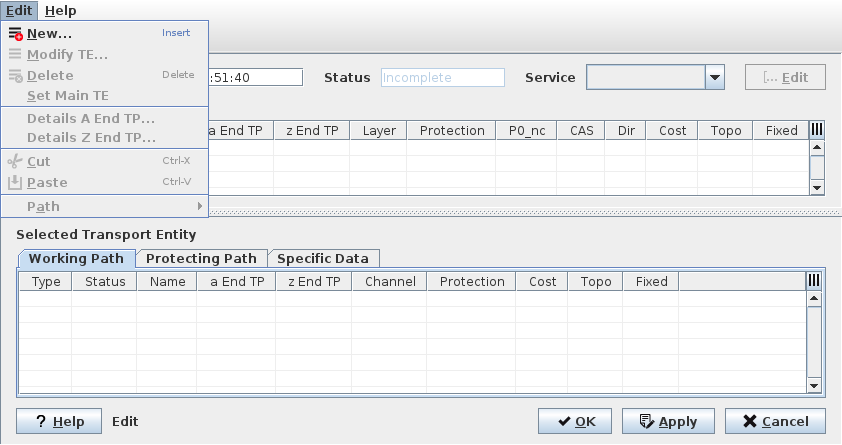

The empty Application Window
To start the provisioning process, click on Edit and select:
New |  | Calls the New TE dialog to create new Transport Entity (TE). Mainly used to provision the network with new services. |
