Licensing Model Details

FOXMAN-UN R18 : FOXMAN-UN Licensing Model : Licensing Model Details

Basic License

per server installation; see details.

1KHW003727R0001

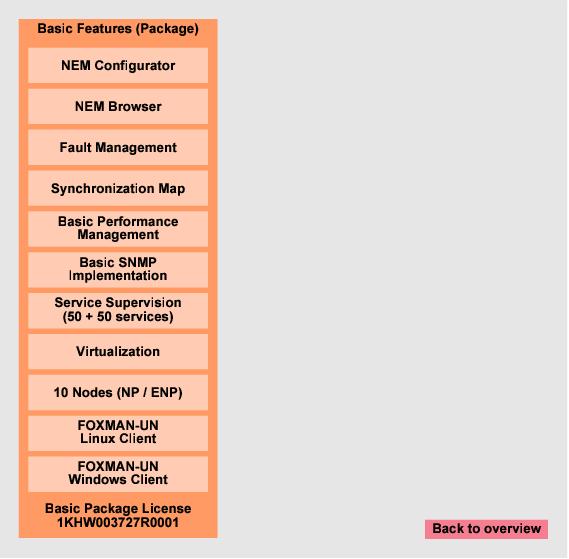

The Basic FOXMAN-UN license fee covers the provisioning of the license key for the following features:

• Installation and operation of the FOXMAN-UN core on a Linux server¹ which can be either

− a physical machine or

− a virtual machine (VM);

• Installation and operation of the FOXMAN-UN client on a Linux machine (physical or virtual);

• Installation and operation of the FOXMAN-UN client on a Windows machine;

• 2 concurrent users (connected locally or remotely from Linux client and/or Windows client);

• Management of 10 network elements (FOX61x or FOX515);

• NEM Configurator;

• NEM Browser;

• Circuit Emulation Manager (CEM);

• Precision Timing Protocol (PTP) Sync Map;

• MPLS Map;

• Fault management;

• Basic performance management;

• Basic SNMP implementation (SNMP southbound interface);

• Synchronization map;

• 10 nodes with Networking Package (NP);

• 10 nodes with Ethernet Networking Package (ENP); this includes the Traffic Engineering feature;

• 50 services in Advanced Service Supervision;

• 50 services in System Service Supervision;

• Support of FOX61x & FOX515 core & service units as defined in the Release Notes;

• Linux client;

• Windows client;

• UCST add-on for Windows Client;

• Virtualization (installation on a virtual machine).

¹ The installation on a VM includes cloning, creation of a snapshot, and replication to a different hosting machine. Installation and operation in parallel on a second VM and/or physical machine is not possible and will require a Standby Server license option.
