Mitigation
To mitigate the risk of an unauthorized access to the FOXMAN-UN Core, it is recommended to deploy the FOXMAN-UN Client application and the FOXMAN-UN Core in a secure network.
This mitigation restricts to possibility, that an unfriendly user could get access to the FOXMAN-UN Core by tracing CORBA messages and re-engineering the protocol.

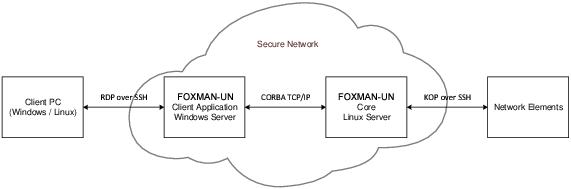

The Figure below shows to basic setup for such a deployment:
• The FOXMAN-UN Client is deployed on a Windows server collocated in a secure network with the FOXMAN-UN Core Server.
• The FOXMAN-UN Client communicates with the Core server using CORBA over TCP.
• The FOXMAN-UN User accesses to the Windows server with RDP (Remote Desktop Connection) using the Remote Desktop Protocol (RDP) over SSH.
• The FOXMAN-UN Core shall use SSH to connect to the Network Elements.
• With this setup only SSH communication to the Secure Network is possible.
As an alternative the Windows server could also be a Linux Server with installed FOXMAN-UN Client only. In this case the communication between the FOXMAN-UN User and the FOXMAN-UN Client server should use SSH.
