DIRAC System Interfaces
The DIRAC system interfaces are located between the SENC1 unit and the DIRAC server, and between the DIRAC server and the FOXMAN-UN.

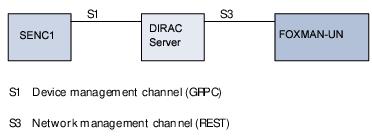

DIRAC system interfaces
S1: Device management channel
The device management channel is based on GRPC. The supported commands are:
− Create Tunnel Endpoint
− Delete Tunnel Endpoint
− Push Master Key
− Refresh Master Key
S3: Network management channel
The network management channel allows the FOXMAN-UN to “program” the DIRAC server via the DIRAC Management Module without knowing the secrets (Master Key value, passwords, SENC1 certificates).
