BP Sections - NP Topological Trails
The Sections are recognized by FOXMAN-UN NP as topological trails.

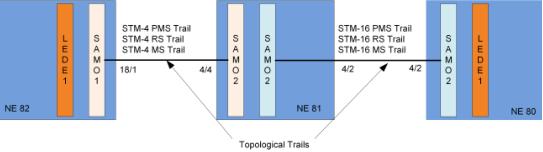

Topological Trails
In our example, the FOXMAN-UN NP auto-generated topological trail for each SDH layer: PMS, RS and MS of STM-4 and STM-16 Sections.
Each Section’s topological trails are maintained in one Application. The FOXMAN-UN BP Section name is used as the Application name.

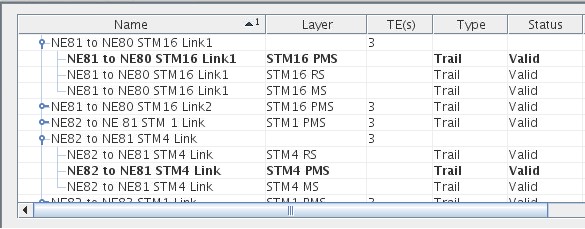

Applications Lists-Topological Trails
