The NP Components

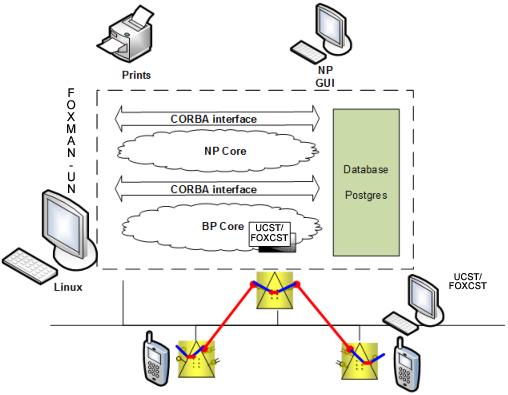

The FOXMAN-UN NP Components
− The Graphical User Interface FOXMAN-UN NP (GUI) allows the user to access the FOXMAN-UN NP functions.
− The Network Documentation functionality is used to generate the information required to document the existing network. FOXMAN-UN NP offers NP Report, which is part of the FOXMAN-UN NP standard installation.
− The back end server which communicates with the Graphical User Interface (GUI) and the FOXMAN-UN BP layer, manages the core processes.
The FOXMAN-UN NP also uses the existing facilities of FOXMAN-UN.
− The FOXMAN-UN NP logs its System Alarms in the FOXMAN-UN BP alarm management system.
− The FOXMAN-UN NP can be launched using the sub-command «Networking Package...» located in the «Application» menu in the FOXMAN-UN NEM Desktop.
