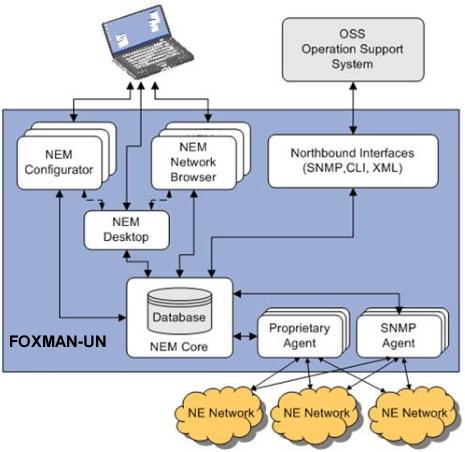

The following diagram shows a simple FOXMAN‑UN system running on a single workstation. This is the typical installation for small to medium networks, dependent on performance requirements.

The figure shows different agents communicating with three distinct NE networks. The user interacts with the GUIs, while the GUIs and the agents communicate with each other via the core component.
